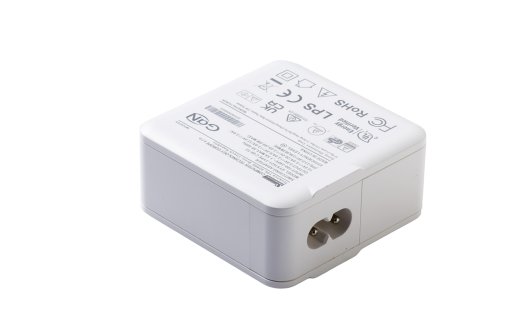

- SYS1621-T2 60W series
- SYS1548-T2 65W series
- SYS1548-T3 65W series
- SYS1649-T3 65W series
- ATS-065W series
- SYS1575-90xx-M3 series
- SYS1576-130xx-M3 series
- STD-120W series
- ATS-160W series
- ATS-200W series
Desktop Power Supplies
Desktop power adapters are indispensable as a source of DC voltage for an entire range of electronic devices. The provided power of 12 to 200W and output voltage from 5 to 56V covers the requirements of all typical uses. The principal areas of use are telecommunications, payment terminals and cashier systems, neon signs, diagnostic equipment, security systems and others.
SYS1888-Wxx/T2 18W series
Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 5V - 24V, power 15W or 18W, output current 0.75A - 3A. Connector 2.1x5.5, cable length 1.4m. Suitable power cord: IEC 320 C7 "∞" or separately connectable plugs for Europe (W2E), G. Britain (W3U), USA (W2), Australia (W2A).
SYS1001-T2 6W series
Desktop power supplies with AC input T2.. Connector 2.1x5.5, cable length 1.4m. Suitable power cord: IEC 320 C7 "∞".

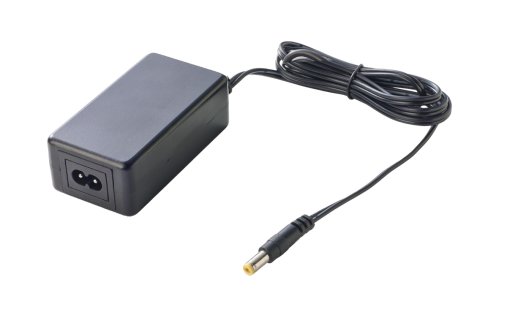

SYS1001-T2 12W series
Desktop power supplies with AC input T2.. Connector 2.1x5.5, cable length 1.4m. Suitable power cord: IEC 320 C7 "∞".

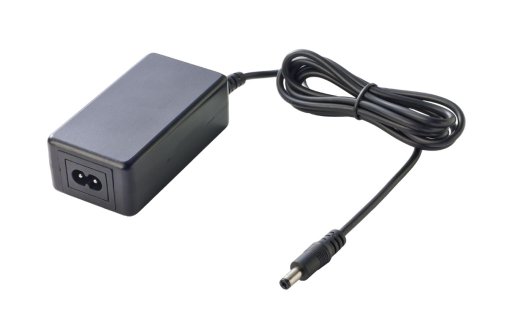

SYS1544-T2 24W series
Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 5-24V, power 24W. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C7 "∞".

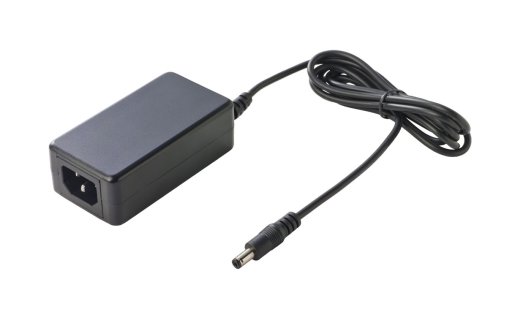

SYS1544-T3 24W series
Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 5-24V, power 24W. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C13 „PC cable“.

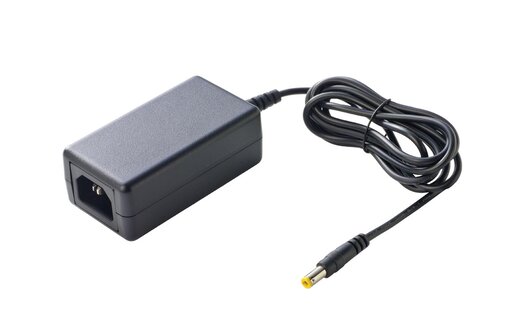

SYS1319-T3 30W series
Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12-24V, power 30W, output current 1.2-2.5A. Connector 2.1x5.5, cable length 1.8m. Suitable power cord: IEC 320 C13 "PC cable".

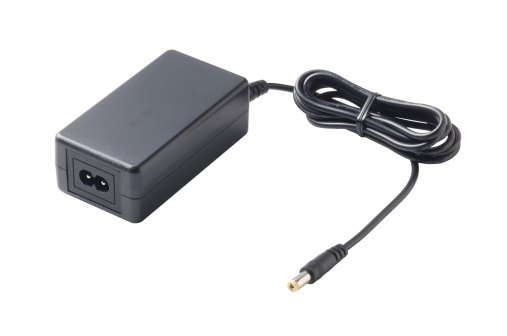

SYS1588-T2 30W series
Desktop power supplies with AC input T2. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C7 "∞".

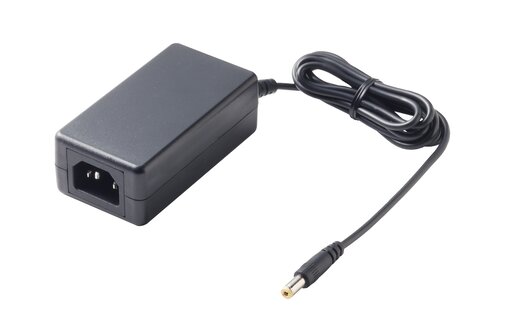

SYS1588-T3 30W series
Desktop power supplies with AC input T3. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".

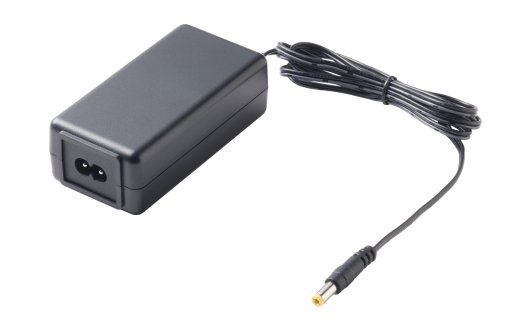

SYS1546-T2 36W series
Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 12-24V, power 36W. Connector 2.1x5.5, cable length 1.4m. Suitable power cord: IEC 320 C7 "∞".
SYS1546-T3 36W series
Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 12-24V, power 36W. Connector 2.1x5.5, cable length 1.4m. Suitable power cord: IEC 320 C13 „PC cable“.
SYS1548-T2 65W series
Desktop power supplies with AC input T2, input voltage 90-264V, output voltage 12-24V, power 50W or 65W, output current 2,7-5,42A. Connector 2.1x5.5, cable length 1,2m or 1,5m. Suitable power cord: IEC 320 C7 "∞".

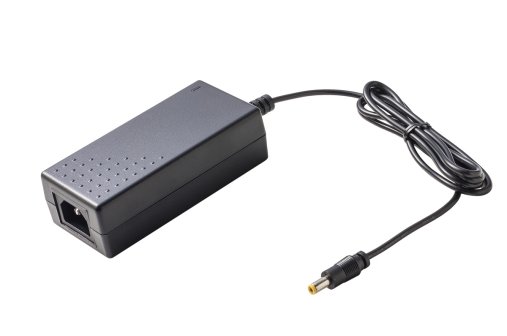

SYS1548-T3 65W series
Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12V; 24V or 48V, power 50W or 65W, output current 1,35–5,42A. Connector 2.1x5.5, cable length 1,2m or 1,5m. Suitable power cord: IEC 320 C13 "PC cable".
SYS1649-T3 65W series
Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 48V, power 65W, output current 1,35A. Connector 2.1x5.5, cable length 1,5m. Suitable power cord: IEC 320 C13 "PC cable".

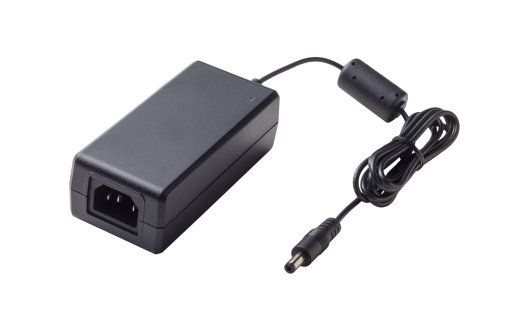

ATS-065W series
Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 48V, power 65W, output current 1.36A. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".
SYS1575-90xx-M3 series
Desktop power supplies with AC input M3, input voltage 90-264V, output voltage 12V - 54V, power 90W, output current 1,6A - 7,5A. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C5 "Mickey Mouse".

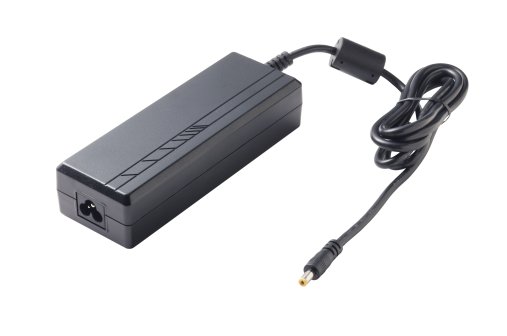

SYS1576-130xx-M3 series
Desktop power supplies with AC input M3, input voltage 90-264V, output voltage 12V - 54V, power 120 - 130W, output current 2,4A - 10,0A. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C5 "Mickey Mouse".

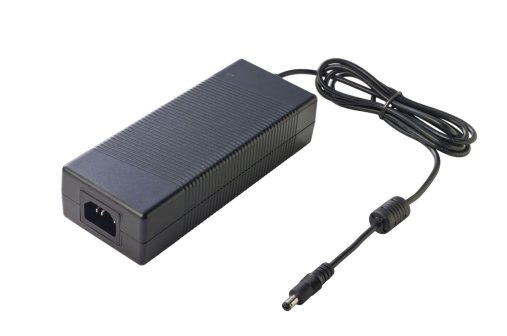

STD-120W series
Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12V; 24V or 48V, power 108W or 120W, output current 2.5A; 5A or 9A. Connector 2.1x5.5, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".

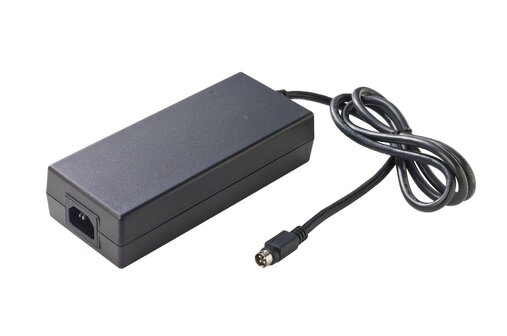

ATS-160W series
Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12V or 24V, power 150W or 160W, output current 6.67A or 12.5A. Connector 4PIN DIN, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".

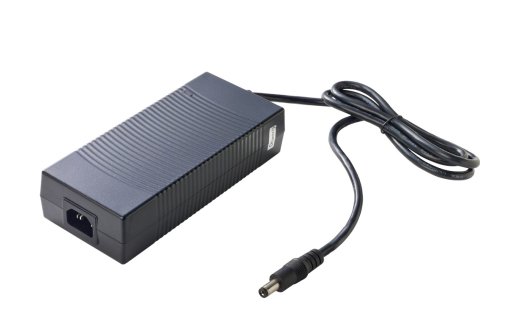

ATS-200W series
Desktop power supplies with AC input T3, input voltage 90-264V, output voltage 12V; 24V or 48V, power 192W or 200W, output current 4.17A; 8.3A or 16A. Connector 2.5x5.5 or 4PIN DIN, cable length 1.5m. Suitable power cord: IEC 320 C13 "PC cable".
