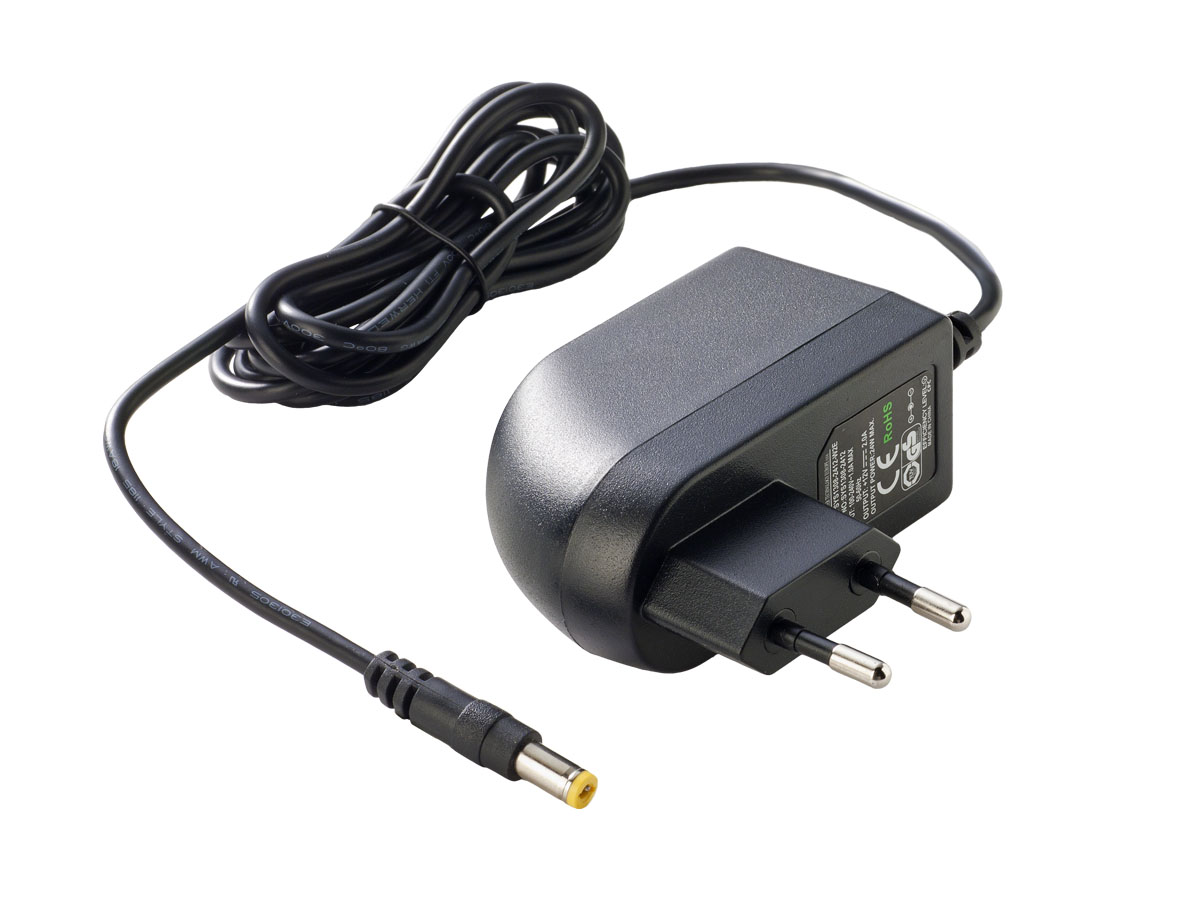

SYS1308-1808-W2E 7.5V (Europe 2.1x5.5x11-S) rc 1.8m (6ft)

  • Product code
    13081808e2155Sr18
  • Series
    SYS1308
  • Output voltage
    7.5 V
  • Power
    18 W
  • Output current
    2.4 A
  • Connector
    2.1x5.5x11-S
  • Cable length
    1.8 m
  • AC Inlet
    W2E
  • Input voltage
    90-264 V
  • Net weight
    0.15 kg
  • Dimensions
    75x34x43 m
  • Carton quantities
    80 pcs
  • Carton weight
    14.5 kg
  • Carton dimensions
    0.460x0.400x0.260 m
Jack

Extension cables with jack (female) connector, in the range of lengths from 0.2m to 4.0m. Operating temperature 0-40 °C.

Jack to Plug

Extension cables with plug-jack (male-female) connectors, in the range of lengths from 1.5m to 4.0m. Maximum load current 5.4A.

Switch

Extension cable switch with length 0.2 m and 0.8 m, maximum load current 5.4A.

Splitters

Extension and splitter cables (parallel) with jack (female) input and Plug (male) output connectors in different lengths. Maximum load current of 5.4A.

Splitters Chain

Extension splitter cables (series) with jack (female) input and Plug (male) output connectors, length 5x18cm. Maximum load current of 5.4A.

Reductions

Reductions with input Jack 2.1x5.5 and output into different variants (e.g. 1.0x2.3x10 Plug (S), 2.5x5.5 Plug (L) 90° and others).

SYS1381N-1207-W2E 7.5V (Europe 2.1x5.5x11-S) 2wc 1.4m (4.5ft)
In stock
>1000 pcs

Output voltage
7.5 V
Power
12 W
Output current
1.7 A
Connector
2.1x5.5x11-S

SYS1308N-1807-W2E 7.5V (Europe 2.1x5.5x11-S) rc 1.8m (6ft)
In stock
659 pcs

Output voltage
7.5 V
Power
18 W
Output current
2.4 A
Connector
2.1x5.5x11-S
